Sprinter Van Murphy Bed Dimensions & MoreUpdated 2 months ago
The Sprinter Van Murphy Bed has multiple compartments for storage, with placement options for the bottom two sections with bamboo sliding doors or metal hatch-style doors. The bamboo doors are optional, allowing you to keep the space open.
This article lists the dimensions of each opening and interior space available based on where each section is installed, as well as product recommendations for Water Tanks and Power.

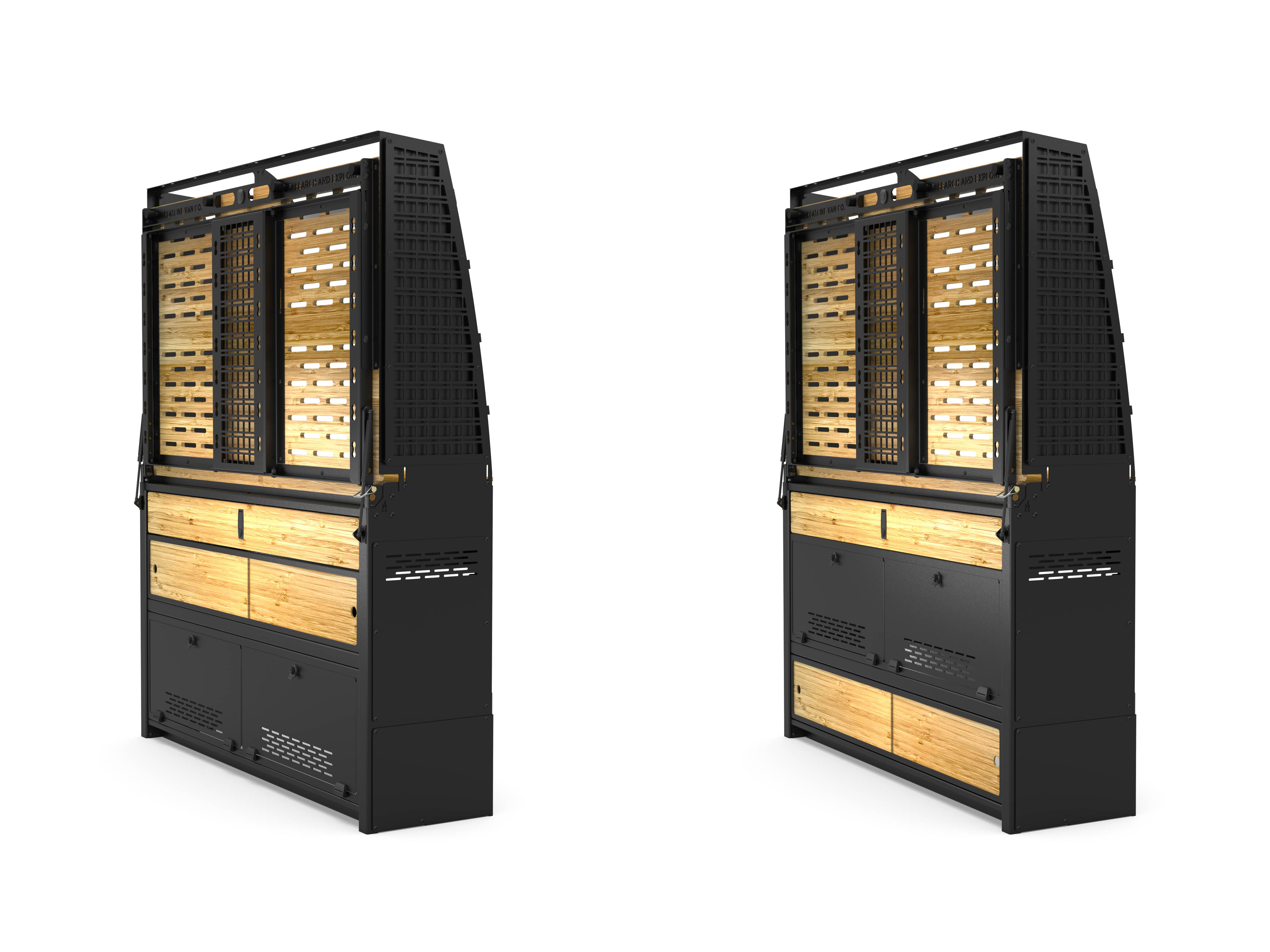

Left: Bamboo doors above metal doors. Right: Metal doors above bamboo doors.
BED-SIDE Compartment Dimensions
Overhead Storage
Opening (each side): 28” wide x 5.5” tall
Interior Space (each side): 29.2” wide x 8.1” deep x 6.75-0” tall
Drawer
Opening: 55” wide x 12.8 long
Interior Space: 55” wide x 14.8” deep x 5.2” tall
Bamboo Doors (short) - in MID section of cabinet
Opening: 55” wide x 7.3” tall
Individual Door Opening: 26” wide x 7.3” tall
Interior Space: 56.4” wide x 15" deep x 9.1” tall
Bamboo Doors (short) - in BASE section of cabinet
Opening: 55” wide x 7.3” tall
Individual Door Opening: 26” wide x 7.3” tall
Interior Space: 56.4” wide x 14.3” deep x 19.2” tall
Metal Doors - in MID section of cabinet
Opening: 55” wide x 12.5” tall
Individual door opening: 27.5” wide x 12.5” tall
Interior Space: 56.4” wide x 15” deep x 15.1” tall
Metal Doors - in BASE section of cabinet
Opening: 55” wide x 12.5” tall
Individual door opening: 27.5” wide x 12.5” tall
Interior Space: 56.4” wide x 14.3” deep x 19.2” tall

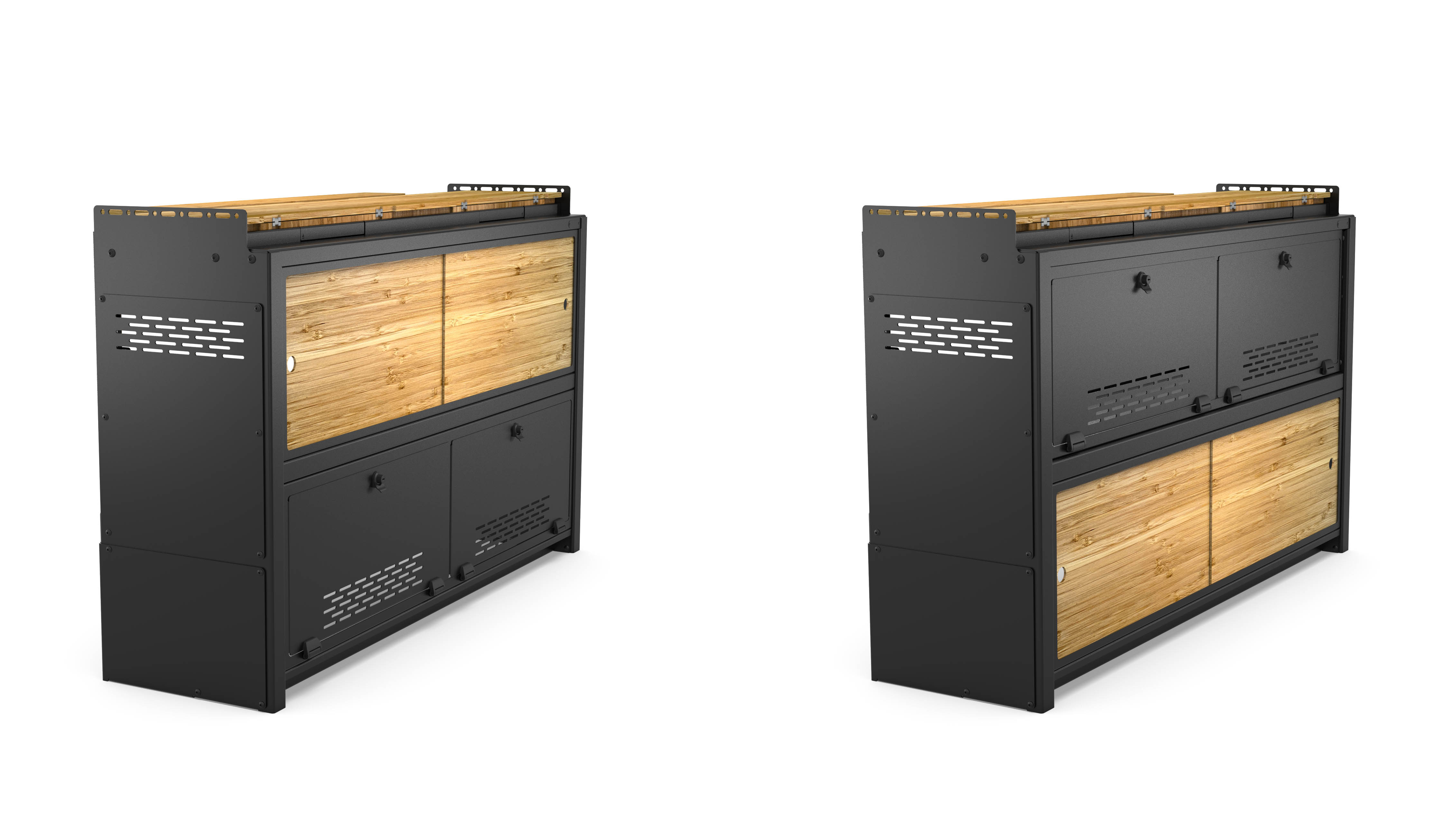

Left: Bamboo doors above metal doors. Right: Metal doors above bamboo doors.
TABLE-SIDE Compartment Dimensions
Under-table Chest/Storage Compartment
Interior Space: 59.4” wide x 13.2” deep x 5” tall
Bamboo Doors (tall) - in MID section of cabinet
Opening: 55” wide x 13.3” tall
Individual Door Opening: 26.5” wide x 13.3” tall
Interior Space: 60” wide x 15.5” deep x 12.2” tall
Bamboo Doors (tall) - in BASE section of cabinet
Opening: 55” wide x 13.3” tall
Individual Door Opening: 26.5” wide x 13.3” tall
Interior Space: 60” wide x 14.3” deep x 19.2” tall
Metal Doors - in MID section of cabinet
Opening: 55” wide x 12.5” tall
Individual Door Opening: 27.5” wide x 12.5” tall
Interior Space: 56.4” wide x 15” deep x 12.2” tall
Metal Doors - in BASE section of cabinet
Opening: 55” wide x 12.5” tall
Individual Door Opening: 27.5” wide x 12.5” tall
Interior Space: 56.4” wide x 14.3” deep x 19.2” tall
Water Tanks
We designed the Murphy Bed around the NW Conversions 20-gallon wheel well water tanks for Sprinter vans, using the larger section with metal doors at the base. Other tank options may fit, but we have only verified fitment for these options from NW Conversions:
Power
The large-sized compartments can accommodate various electrical systems and power kits; what you choose should be based on your needs and the available space in your specific setup. That said, the power system we've used in our Murphy Bed setup is the EcoFlow 5kwh System.
Have more questions? Email us at [email protected]
